Perfect Histogram With Buy Sell Arrows - Amibroker AFL Code

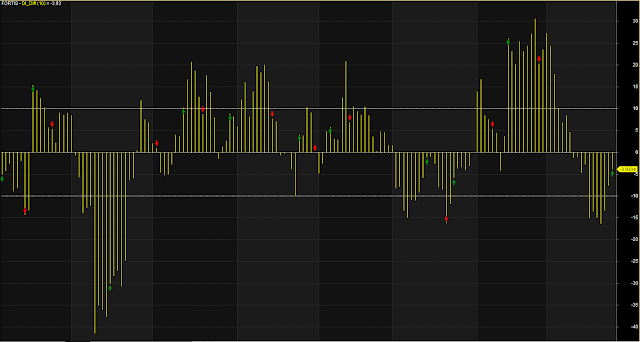

Click Image To Enlarge. Please Rate And Comment.

Perfect Histogram With Buy Sell Arrows

// PIBD DMI Histogram
// Developed by James Pujals 2004-2005
// Scaling > Custom > Min: -60   Max: 60
// Grid Lines > +/-100

//_SECTION_BEGIN("DI-Diff");
// In Paramater dialog, why does DI-Diff Parameter and PIBD DMI Histogram (1023) Parameter show
// Only DI-Diff Parameter affects indicator when value is changed
Periods = Param("DMI/ADX Periods",10,5,40,1,1);
_N( strPeriods = "("+WriteVal( Periods, 1.0 )+")" );
DiDiff = PDI(Periods) - MDI(Periods);
Plot( DiDiff, "DI_Diff "+strPeriods, colorYellow, styleHistogram );

//========================================
// INITIALIZATION
FirstBar = -1;
for(i=0;i < BarCount;++i)
{
 DiffBuySell[i] = 0; // 0=closed,1=position opened
 ShapeArray[i] = 0;
 if (DiDiff[i] != 0 AND FirstBar == -1)
 {
  FirstBar = i;
 }
}

DiffTriggerBuy = 10;
DiffTriggerSell = 10;
PositionType = 0;
SignalBar = 0;
SignalDiff = 0;

//========================================

for (BIndex=FirstBar; BIndex < BarCount;++BIndex)
{
 if (BIndex == FirstBar)
 {
  SignalBar = BIndex;
  SignalDiff = DiDiff[BIndex];
  if (DiDiff[BIndex] > 0)
  {
   PositionType = 1; // BUY
   DiffBuySell[BIndex] = 20;
   ShapeArray[BIndex] = shapeUpArrow; // Plot below
  }
  else
  {
   PositionType = -1; // SELL
   DiffBuySell[BIndex] = -20;
   ShapeArray[BIndex] = shapeDownArrow; // Plot above
  }
 }
 else
 {
  if (PositionType == 1)
  {
   if (SignalDiff < DiDiff[BIndex])
   {
    SignalBar = BIndex;
    SignalDiff = DiDiff[BIndex];
   }

   if ((DiDiff[SignalBar] - DiDiff[BIndex]) > DiffTriggerSell)
   {
    PositionType = -1; // SELL
    SignalBar = BIndex;
    SignalDiff = DiDiff[BIndex];
    DiffBuySell[BIndex] = -20;
    ShapeArray[BIndex] = shapeDownArrow; // Plot above
   }
   else
   {
    DiffBuySell[BIndex] = DiffBuySell[BIndex-1];
    ShapeArray[BIndex] = shapeNone; // Plot nothing
   }
  }
  else
  {
   //PositionType = -1
   if (SignalDiff > DiDiff[BIndex])
   {
    SignalBar = BIndex;
    SignalDiff = DiDiff[BIndex];
   }

   if ((DiDiff[Bindex] - DiDiff[SignalBar]) > DiffTriggerBuy)
   {
    PositionType = 1; // BUY
    SignalBar = BIndex;
    SignalDiff = DiDiff[BIndex];
    DiffBuySell[BIndex] = 20;
    ShapeArray[BIndex] = shapeUpArrow; // Plot below
   }
   else
   {
    DiffBuySell[BIndex] = DiffBuySell[BIndex-1];
    ShapeArray[BIndex] = shapeNone; // Plot nothing
   }
  }
 }

  //_TRACE("BIndex="+NumToStr(BIndex)+" SignalBar="+NumToStr(SignalBar)+" SignalDiff="+NumToStr(SignalDiff)+" PositionType="+NumToStr(PositionType) + " DiDiff[BIndex]="+NumToStr(DiDiff[BIndex]) );
}

//========================================
//Plot( DiffBuySell, "DiffBuySell", colorRed, styleDots | styleNoLine | styleThick );

PlotShapes( ShapeArray, IIf(ShapeArray == shapeUpArrow, colorGreen, colorRed ), 0, DiDiff);

//========================================
PlotGrid( 10, colorWhite); // PDI Positive Strength Line
PlotGrid( 0, colorWhite); // Neutral Zone
PlotGrid( -10, colorWhite); // MDI Negative Strength Line
//_SECTION_END();
